Setup A Dynamic Air Monitoring System

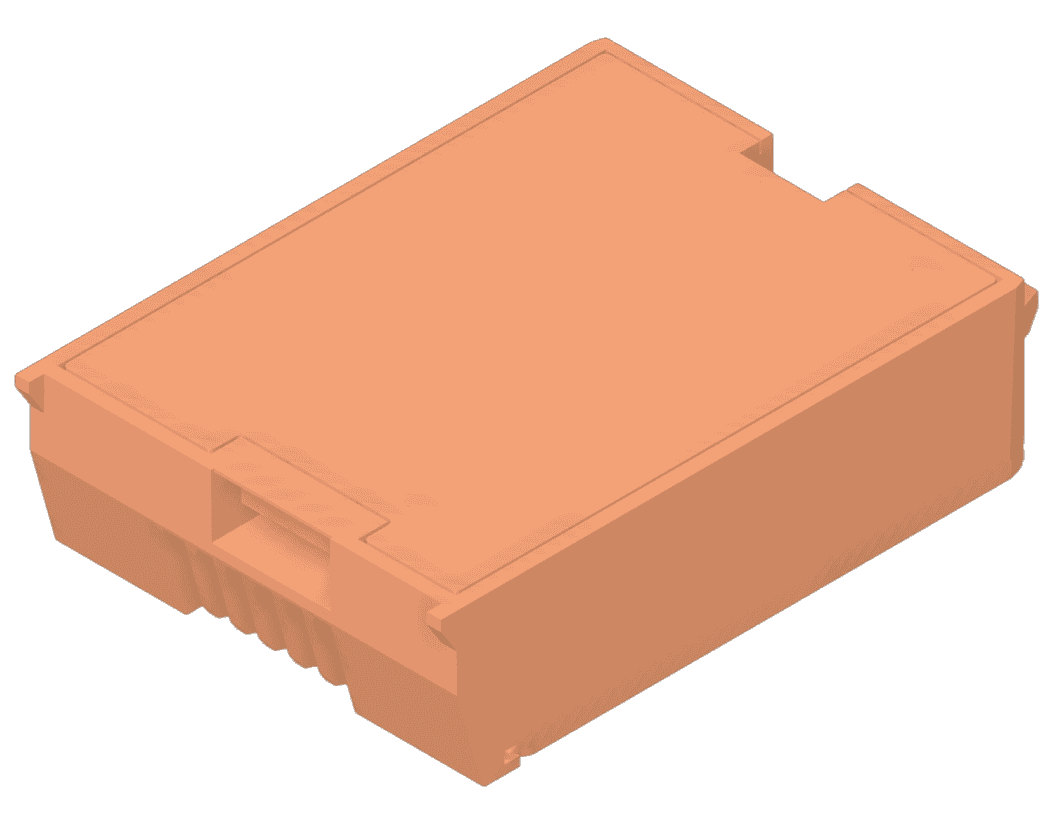

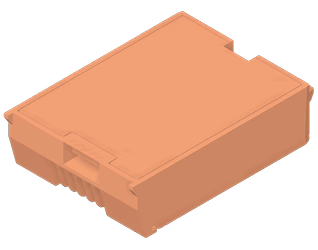

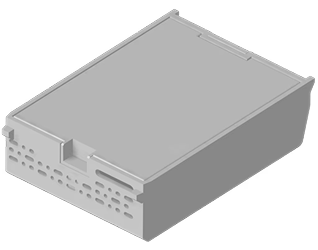

Various Modules to Choose
Both slots can insert different modules for expanded measurements or as batteries for longer operational life, without replacing the base hardware.
CO Sensor
Range
0-1000ppm
Accuracy
±5ppm or ±10%
Resolution
5ppm
Sensor Type
Micro Fuel cell
NO2 Sensor
Range
0-5ppm
Accuracy
± 5% F.S
Resolution
0.001ppm
Sensor Type
Solid polymer Electrochemical Sensing technology
TVOC Sensor
Range
0-500
Accuracy
≤ ± 15
Resolution
1
Sensor Type
MOx
PM2.5 Sensor
Range
0-1,000 μg/m³
Accuracy
0-100μg (±10μg/m3 ), 100-1000μg (±10%)
Resolution
1 μg/m3
Sensor Type
Light Scattering
NO2 & CO Sensor
Range
0-1000ppm(CO), 0-5ppm(NO2)
Accuracy
±15ppm or ±10%(CO), ±5% F.S(NO2)
Resolution
1ppm(CO), 0.001ppm(NO2)
Sensor Type
Micro Fuel cell(CO), Solid Polymer Electrochemical (NO2)
Ozone Sensor
Range
0-5ppm
Accuracy
± 5% F.S
Resolution
0.001ppm
Sensor Type
Solid polymer Electrochemical Sensing technology
HCHO Sensor
Range
0-1ppm
Accuracy
± 5% F.S
Resolution
0.001ppm
Sensor Type
Solid Polymer Electrochemical
NH3 Sensor
Range
1ppb
Accuracy
± 5% F.S
Resolution
0.01ppm
Sensor Type
solid polymer electrochemical sensing technology
H2 Sensor
Range
0-5 % vol.
Accuracy
± 5% F.S
Resolution
0.01ppm
Sensor Type
Solid polymer Electrochemical Sensing technology
H2S Sensor
Range
0-5ppm
Accuracy
± 5% F.S
Resolution
1ppb
Sensor Type
Solid polymer Electrochemical Sensing technology
SO2 Sensor
Range
0-5ppm
Accuracy
± 5% F.S
Resolution
1ppb
Sensor Type
Solid polymer Electrochemical Sensing technology
Battery
Battery Type
AA Battery
Numbers
Three
Volume
2700maH
